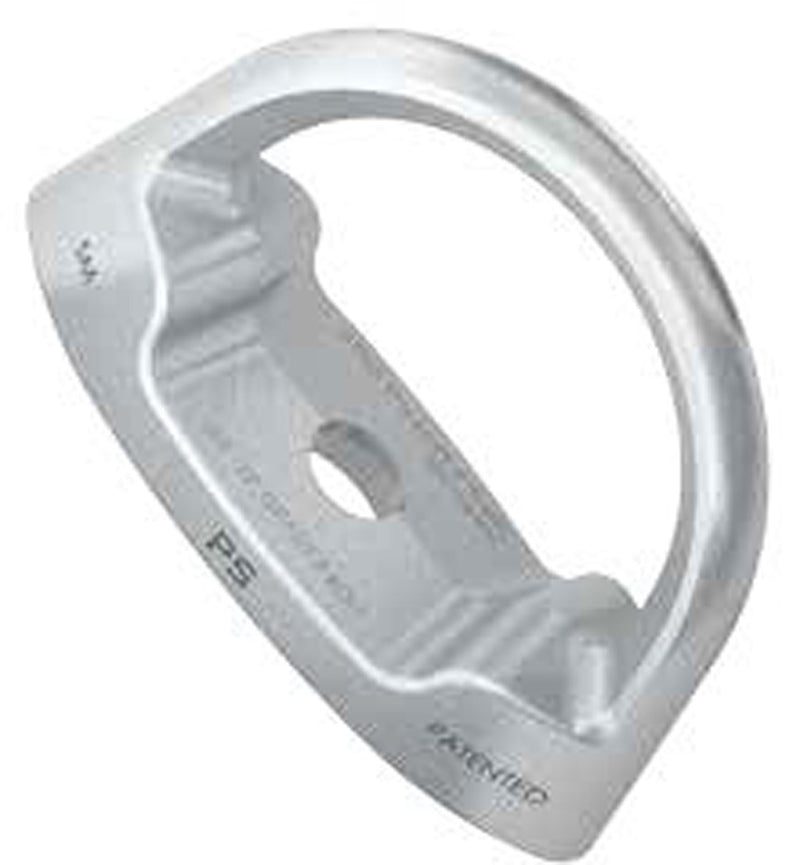

Anchorage D-Ring

Specifications: Drop Forged Steel, 100% proof loaded to 3,600 lbs (16kN), Min tensile strength 5,000 lbs (22.2kN)
Recommended bolts for anchorage
connector installation: minimum grade 5 quality with lock washer.
Recommended torque values: 65-75 ft-lb for a 1/2” clearance hole (13 TPI bolt). 145-155 ft-lb for a 5/8” clearance hole (11 TPI bolt). 240-250 ft-lb for a 3/4” clearance hole (10 TPI bolt).
